Upgrade Performance GT/VNT 15-25 700625-0001 / 716111-0001 /
709835-0001 Billet Compressor wheels Mercedes-Benz / Perkins

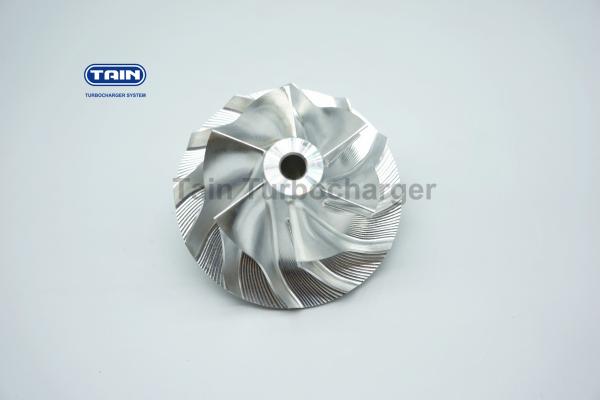

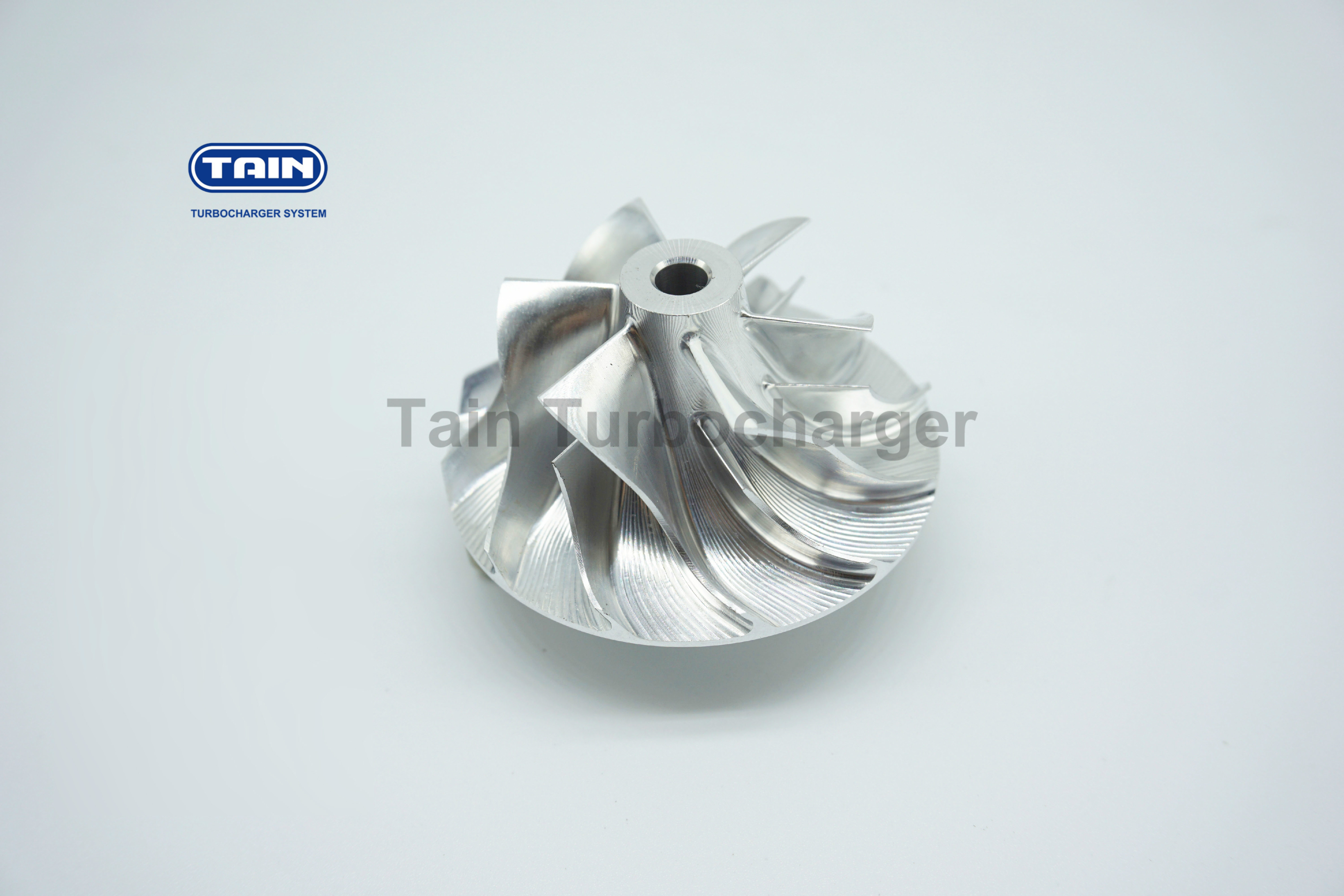

Billet Compressor Wheel
The most popular current upgrade in the Turbocharger world is the
use of Billet CompressorWheels.
Billet Compressor wheels or MFS Wheels (Manufactured from Solid)
are made from a solid piece of alloy
(billet) . A CNC milling machine machines the wheel from a CAD
program automatically from the CAD
design. There are many benefits to this type of wheel manufacture.
Billet compressor wheels are far
stronger than a cast wheel due to being machine from a solid piece
of material rather than via molten
material. Billet generally has less flaws. This extra strength
allows the wheel blades and hub to be
thinner, increasing blade area resulting in increased air flow from
a wheel with matching overall
dimensions.
DIMENSION
| BLADES | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 6/6 | 36.8 | 52 | 4.8 | 26 | 5.08 |
PRODUCT DETAILS
| Name | Billet compressor wheels |
Fit Turbo |
700625-0001 700625-0002 716111-0001 709835-0001 709835-0002 709836-0001 709836-0003 709836-0004 711006-0001 711006-0003 726698-0001 726698-0002 726698-0003 778794-0001 704412-0001 452191-0004 452191-0005 452191-0006 452191-0007 452191-0008 452222-0002 452222-0003 452222-0004 452222-0006 452301-0001 452301-0003 727262-0002 727262-0003 727262-0004 727262-0006 727262-0007 727263-0001 727263-0002 727264-0003 727264-0004 727264-0005 727264-0006 727264-0007 727264-0008 727264-0009 727265-0001 727265-0002 727265-0003 727266-0001 727266-0002 727266-0003 454205-0001 454205-0006
|
MODEL | GT/VNT 15-25 |
SN NO. | 436322-0003 / 436131-0003 |
MATERIAL | Aluminum Block |
APPLICATION
|
Mercedes-Benz C class / Sprinter
Perkins
|
Engine NO. | 6110960099 / 2674A393 |
PRODUCT SHOW
WHAT WE SUPPLY
Tain supplies high performance turbo cartridges(CHRAS) and turbo
kits to aftermarket worldwide.
Originally manufactured by Honeywell(Garrett),Borg
Warner(KKK),MHI(Mitsubishi), IHI, Toyota, Holset.
Model cover :
Garrett: GT12,GT14,GT15-25,GT35,GT37,GT42,T2,T3,T04B-E
KKK: K03,K04,K14,K16,K24,K27,KP35,BV39,BV40,BV45,BV50
Schwitzer: S100,S1A,S1B,S200,S2A,S2B-E,S300,S3A,S3B,S400,S410
Holset:
HX30(W),HX35(W),HX40(W),HX50(W),HX55(W),HE211(W),HE35V,HE40V,HE55V
IHI: RHB3,RHF3,RHF4,RHF5,
MHI: TC04,TC06,TD02,TD03,TD04,TD05,TD06,TF035
Toyota: CT9,CT12,CT12B,CT16,CT20,CT20B,CT26
