Billet Compressor Wheel GT26 17291-0L040 17201-30010 Upgrade Performance for TOYOTA LANDCRUISER turbocharger
Billet Compressor Wheels
The most popular current upgrade in the Turbocharger world is the
use of Billet CompressorWheels.
Billet Compressor wheels or MFS Wheels (Manufactured from Solid)
are made from a solid piece of alloy
(billet) . A CNC milling machine machines the wheel from a CAD
program automatically from the CAD
design. There are many benefits to this type of wheel manufacture.
Billet compressor wheels are far
stronger than a cast wheel due to being machine from a solid piece
of material rather than via molten
material. Billet generally has less flaws. This extra strength
allows the wheel blades and hub to be
thinner, increasing blade area resulting in increased air flow from
a wheel with matching overall
dimensions.
PRODUCT DETAILS
►Model : CT 26
►Fitted Turbocharger :
| 17201-0L040 |
| 17201-30100 |
| 17201-30101 |
| 17201-30160 |
| 17201-30110 |
| 17201-30181 |
| 17201-30010 |
| 17201-30011 |
►SN NO. : 17291-0L040
►Material : Aluminum Block
►Application : Toyota Landcruiser
►Engine NO. : 17201-30010
►Package : anti-rust paper + plastic bag + PE foam + corrugated box
►DIMENSION
| BLADES | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| 6/6 | 39.1 | 58 | 4.60 | 26.50 | 5.10 |

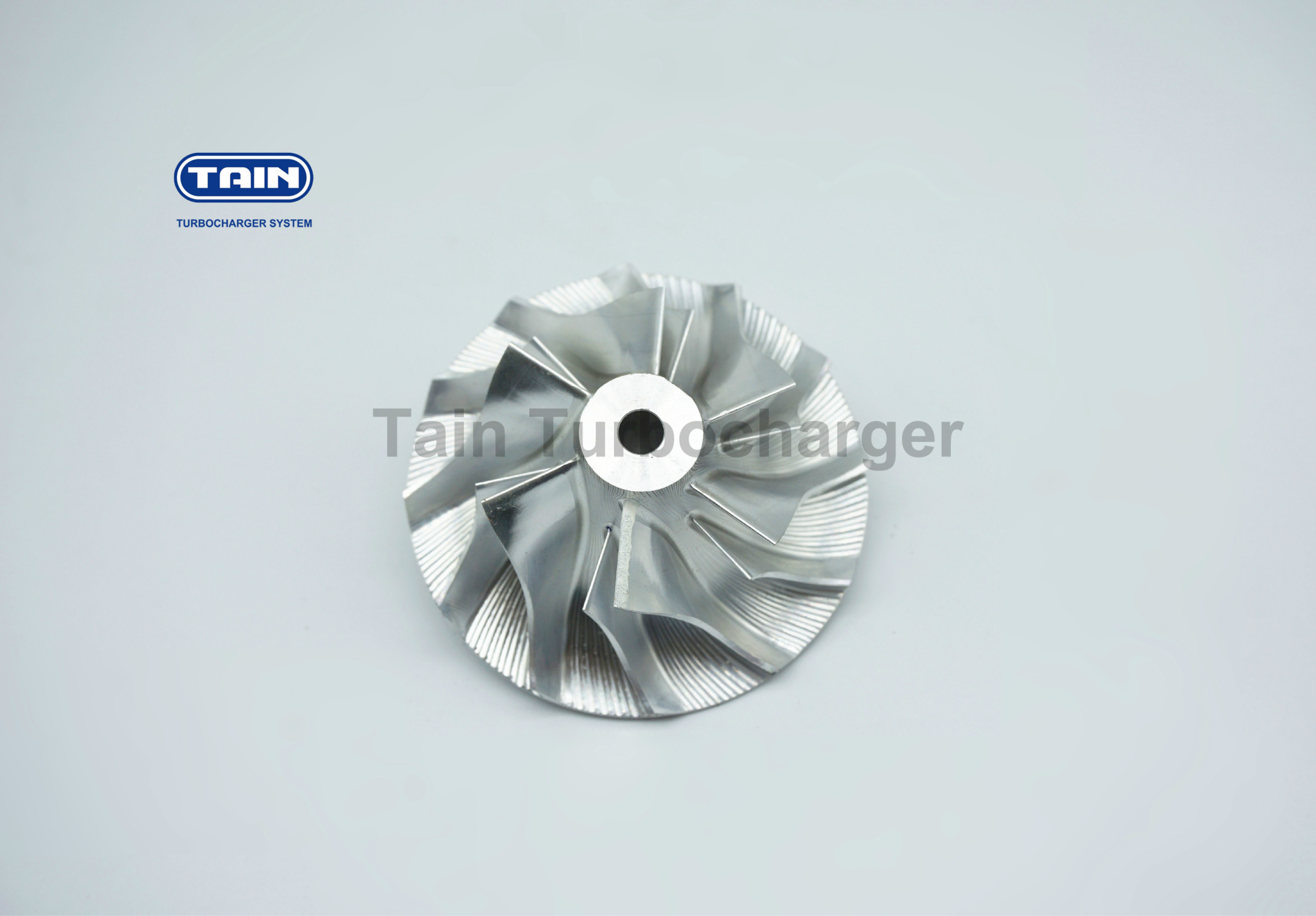

PRODUCT SHOW
TIAN HISTORY
1995 - Tain turbo was established , covers an area of 4,000 square
meters,owns
complete production lines for compressor wheel,compressor
housing,and turbo shafts.
2005 - Tain applied advanced PLC-6 low-pressure casting equipment.
2010 - Tain set up foreign trade department,specialized in
exporting turbochargers,cartridges and other turbo parts,like
shafts,compressor wheels,repair kits,ect.
2010 – Tain cooperated with several big dealers and distributers
from German ,and develop a variety of VNT turbocharger.
2012 – Tain entered the south America market,and won a good
reputation for our good quality,complete product chain and sincere
service.
2015 - Tain applied SCHENCK TB Sonio-core assembly balancing
equipment,and other testing equipments to establish a final product
quality assurance system.
2017 – Tain imported a 5-axis equipment – MAKINO L2. We have a
production line of billet compressor wheels now.
TECHNICIAL TEAM
Our technical team was composed by one advanced engineer with 15
years experience and four
engineers who are very professional in this field. They are
familiar with turbocharger system and
product structure and dimension.
They are mainly responsible for source selection,quality
control,dimension inspection and product
development.Thanks to them,currently we can supply over 300 types
of turbo chras and always keep
our producs quality in a high level.
